BRINE CONTROL VALVES

Brine Control Valves

TOUGH STUFF® Brine Control Valves are considered by many professionals to be the best in the commercial/industrial water treatment industry. Since its introduction in 1957, our brine control valve has seen numerous improvements based on years of service in the field. Our expertise in plastics machining has contributed to its proven performance and longevity.

TOUGH STUFF Brine Control Valves operate hydraulically, not electrically. This ensures reliable operation of the float and check mechanism responsible for refilling a brine tank. In a power outage, should the softener valve freeze in refill mode, TOUGH STUFF Brine Control Valves will prevent overfilling of the brine tank.

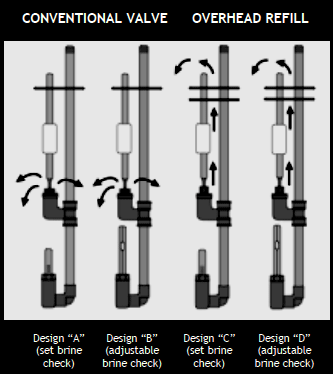

Four designs are available for a variety of applications. All four feature an adjustable refill float to accommodate grid plates of varying heights. Designs “B” and “D” offer an adjustable brine check that allows a field technician to determine the amount of saturated brine left in the brine tank after draw. Designs “C” and “D” are offered for applications involving oddly shaped or unusually large brine tanks, or extra deep brine wells. Tubing can be attached to Designs “C” and “D” to disperse water to a specific area of a brine tank during refill. Designs “A” and “B” in 3/8", ½" and ¾" have been our most popular and are stocked for immediate shipment.

TOUGH STUFF Brine Control Valves are manufactured using plastic components and seals suitable for saturated brine solution as well as potassium permanganate. All four designs are compatible with a variety of electronic softener valves including those from Autotrol and Fleck.

STANDARD BRINE CONTROL VALVES

ITEM DESCRIPTION
H6000-38 BRINE VALVE .375" MPT TYPE A SET BRINE CHECK
H6000-38C BRINE VALVE .375" MPT TYPE C OVERHEAD REFILL, SET BRINE CHECK
H6000-A BRINE VALVE .5" MPT TYPE A SET BRINE CHECK
H6000-B BRINE VALVE .5" MPT TYPE B ADJUSTABLE BRINE CHECK
H6001 BRINE VALVE .75" MPT TYPE A SET BRINE CHECK
H6001-B BRINE VALVE .75" MPT TYPE B ADJUSTABLE BRINE CHECK
H6001-C BRINE VALVE .75" MPT TYPE C OVERHEAD REFILL, SET BRINE CHECK
H7073 BRINE VALVE 1" MPT TYPE A SET BRINE CHECK
H7075 BRINE VALVE 1.25" MPT TYPE A SET BRINE CHECK



TECHNICAL SPECIFICATIONS

Maximum recommended operating temperature............................... 140ºF (60ºC)
Maximum recommended operating pressure..................................... 75 PSI
Materials............................................................................................... PVC, ABS & EPDM
Brine well size....................................................................................... 4" (easily adaptable to 5")
